The Laboratoire Sous-marin Provence Méditerranée (LSPM) is a national plateform of CNRS's National Institute of Nuclear and Particle Physics (LSPM, CNRS UAR2032 unit). LSPM has been labelled "Aix-Marseille Technological Plateform" in order to structure the offer of skills and to make it easily accessible to the socio-economic and academic world. Aix-Marseille University and Ifremer participate in the piloting of this infrastructure oriented towards multidisciplinary research and scientific culture. CPPM is the host laboratory for this platform, consisting essentially of an underwater infrastructure, installed at a depth of 2,450 meters, 40 kilometers south of Toulon, with real-time data transmission from the various instruments to the control rooms on land (La Seyne-sur-Mer, Marseille). The LSPM platform hosts the KM3NeT ORCA neutrino detector and EMSO environmental sensors. Other underwater connection links are available for new users.

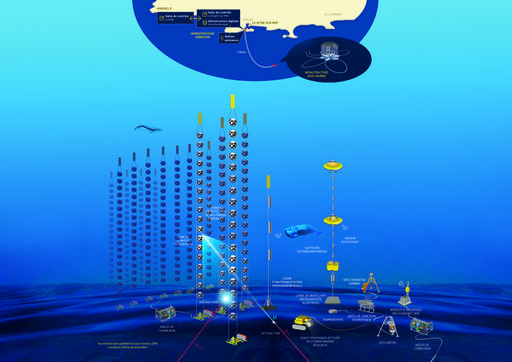

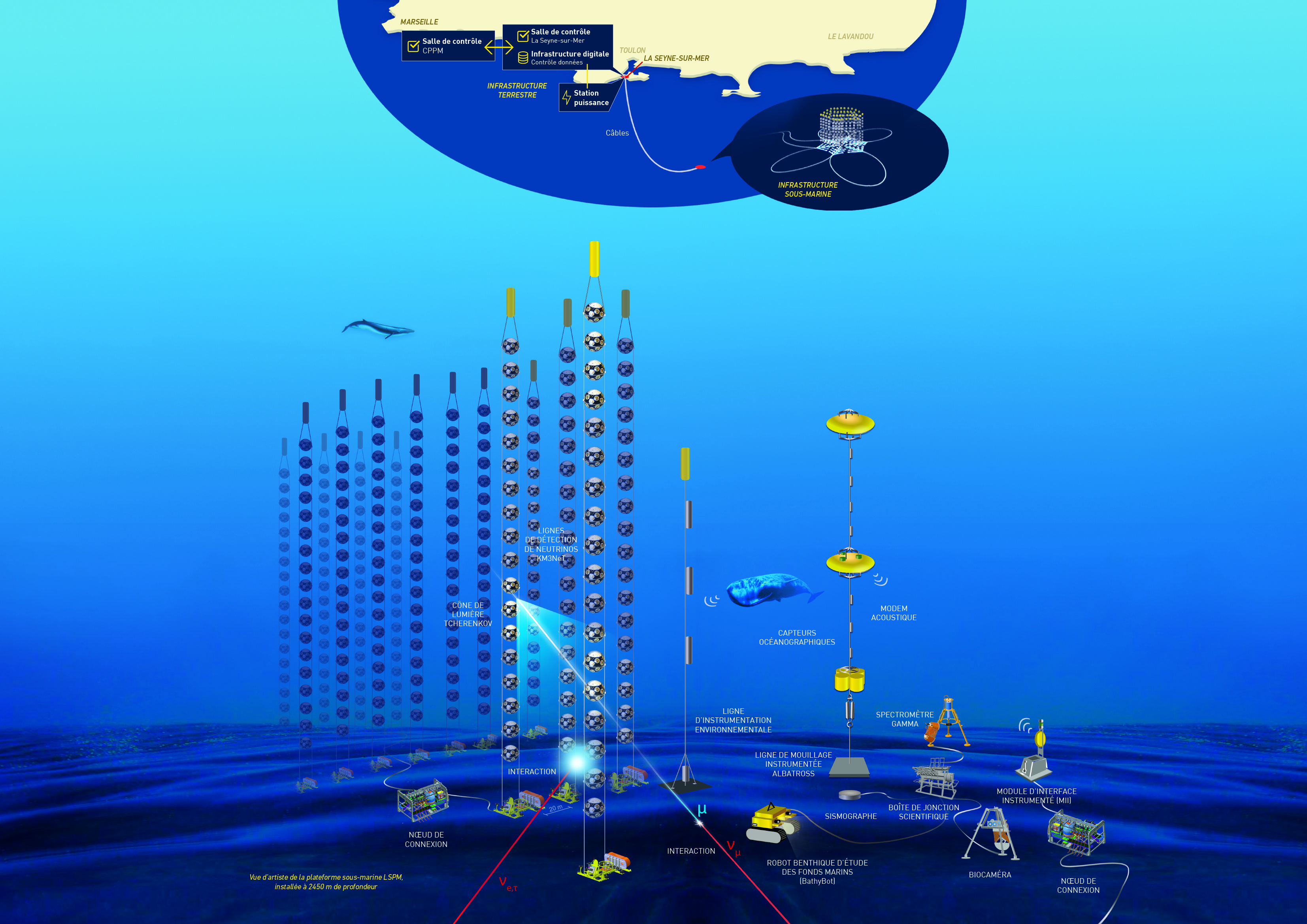

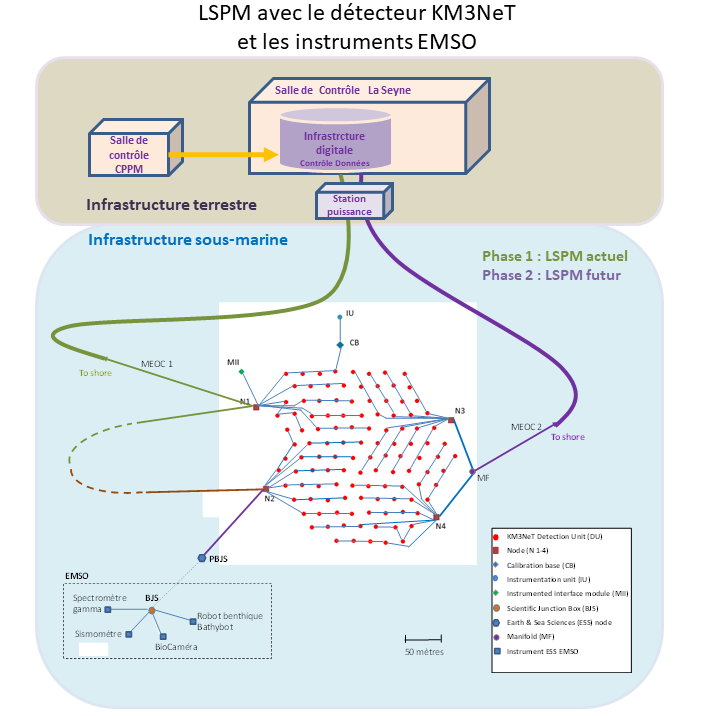

Underwater infrastructure:

  • electro-optical cables for shore connection,

  • junction boxes for interfacing underwater instrumentation,

  • long base acoustic positioning system,

  • junction box dedicated to environmental measures.

Land infrastructure with a multidisciplinary and educational vocation:

  • Main control room in La Seyne-sur-Mer: real-time control of experiments, data acquisition and processing, high-speed connection to other control and storage centers,

  • Remote control room at the CPPM: showroom, reception, multimedia installations.

The plateform was initiated through the MEUST/NUMerEnv subsea insfrastructure (MEUST), and hosts the French site of the international KM3NeT experiment. It also represents the West-Ligure node of EMSO for environmental studies conducted by the Technical Division of the National Institute of Sciences of the Universe (DT-INSU) of the CNRS, the Mediterranean Institute of Oceanology (MIO), the Computer and Systems Laboratory (LIS) and Géoazur. LSPM is the second generation of submarine infrastructure, after the one deployed in the framework of the ANTARES experiment.

The LSPM is financed through the NEUMED project within the framework of the State-Region Plan Contract (CPER) by the Délégation Régionale Académique à la Recherche et à l'Innovation (DRARI), the Région Sud, the CNRS through the Institut National de Physique Nucléaire et de Physique des Particules (IN2P3) (National Institute for Nuclear Physics and Particle Physics), the Conseil départemental des Bouches-du-Rhône, the Metropole d'Aix-Marseille Provence, and the City of Marseille.

The LSPM was also able to take form with the previous projects MEUST and NUMerEnv thanks to financial contributions from the European Union (FEDER), France: Ministry (DRARI), CNRS, Aix-Marseille University, South Region, Var Departmental Council, Toulon Provence Mediterranean Metropolis, City of Marseille. The LSPM is supported by the City of La Seyne-sur-Mer as the host city for the control room and the power station. It also benefits from the support of the Pôle Méditerranée, the University of Toulon and the many skills of the industrial fabric of the Provence-Alpes-Côte d'Azur region in the marine field.



Déploiement du Nœud 2 de connexion du LSPM. Cette pièce maîtresse fait partie de la plateforme nationale de recherche pluridisciplinaire de l’IN2P3 du CNRS, le Laboratoire Sous-marin Provence Méditerranée (LSPM). © CPPM

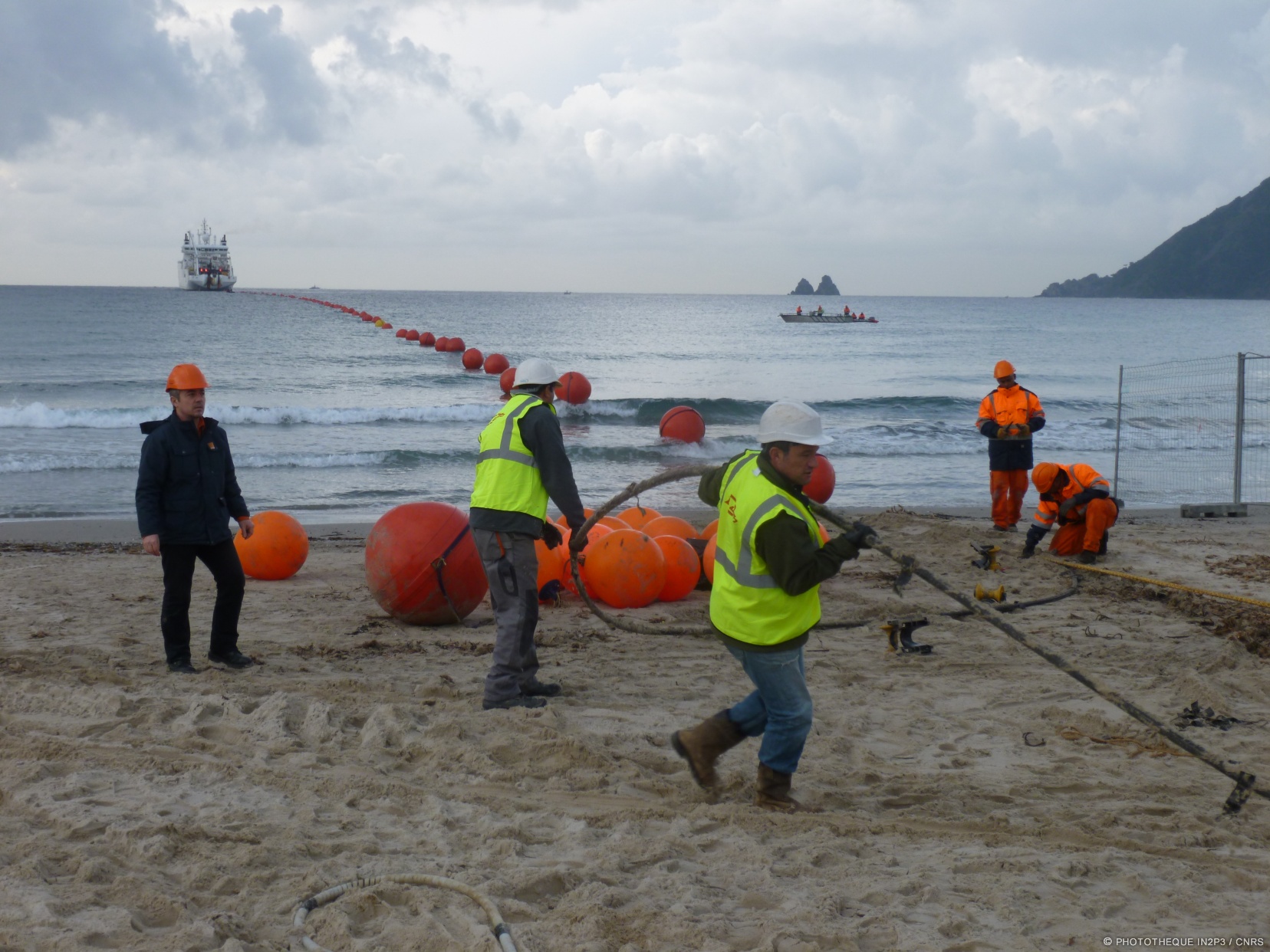

Enfouissement du câble électro-optique de 40 km (MEOC1) © CPPM

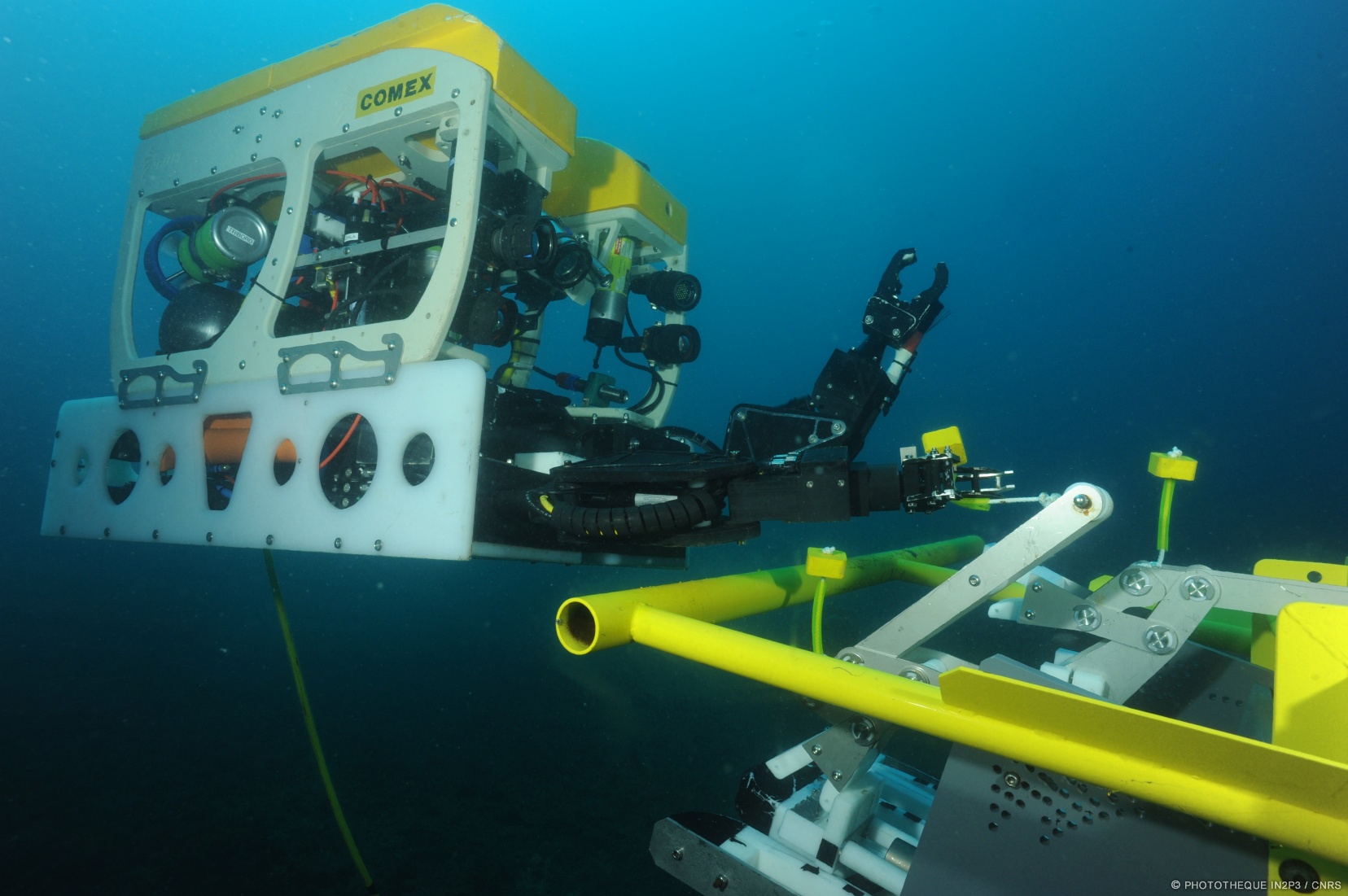

Connexion sous-marine par le robot téléopéré de la COMEX/SAAS © B. Chemisky - Crédit Comex

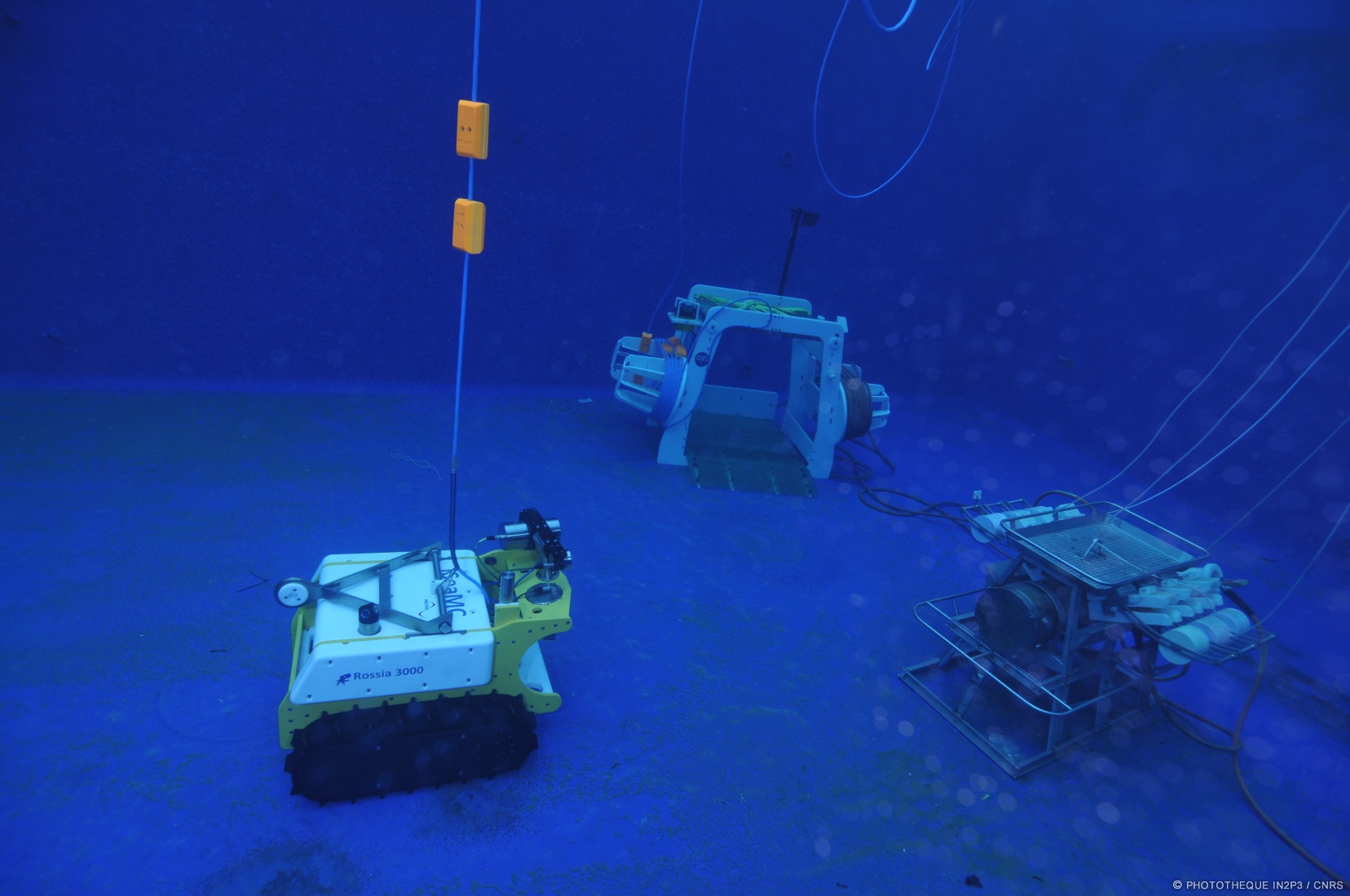

Essais en bassin du Bathybot connecté à la boite de jonction scientifique © Dorian Guillemain, OSU/MIO, DT-INSU

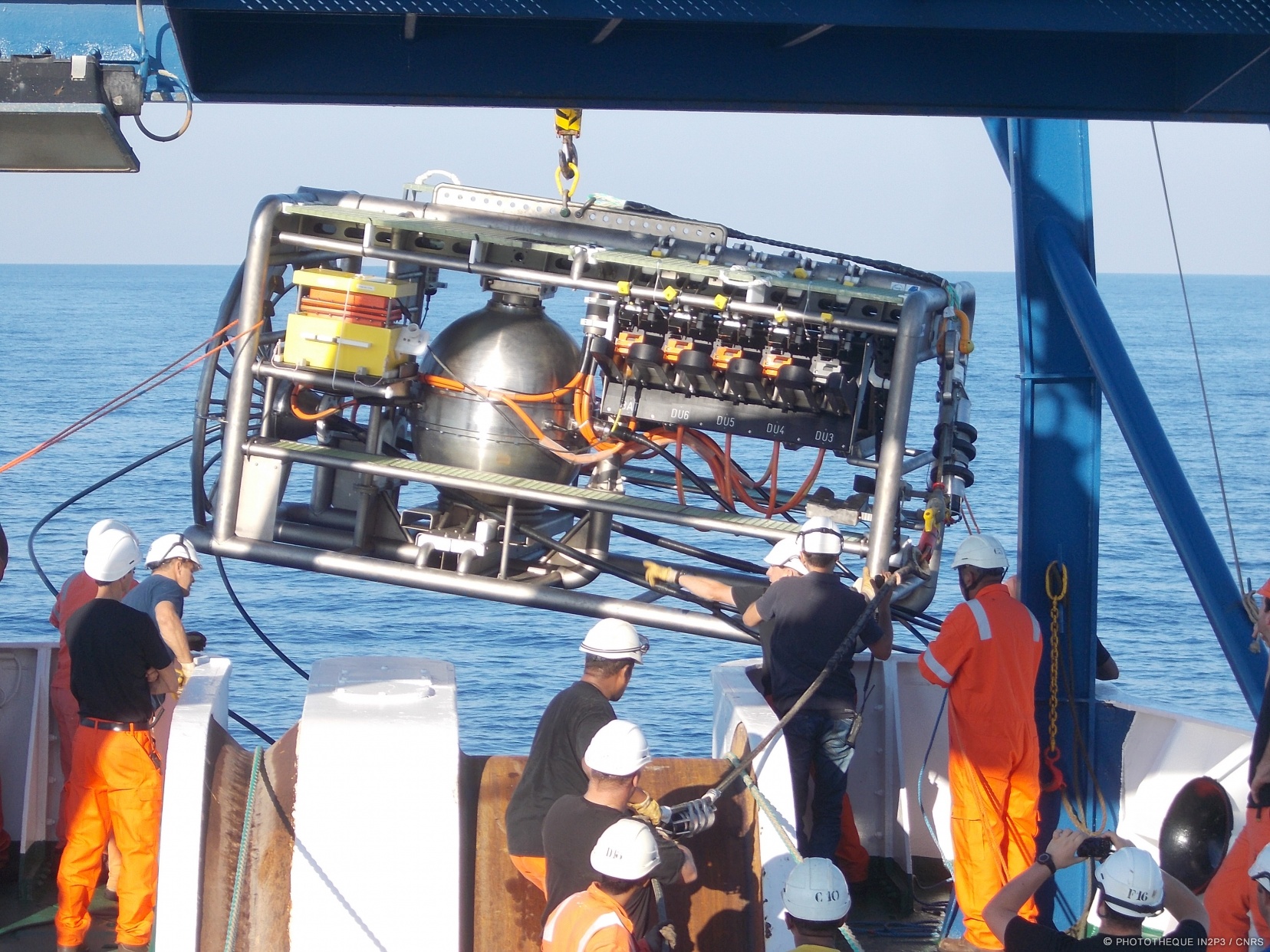

Déploiement du Nœud 1 de connexion du LSPM © Damien Dornic - CPPM

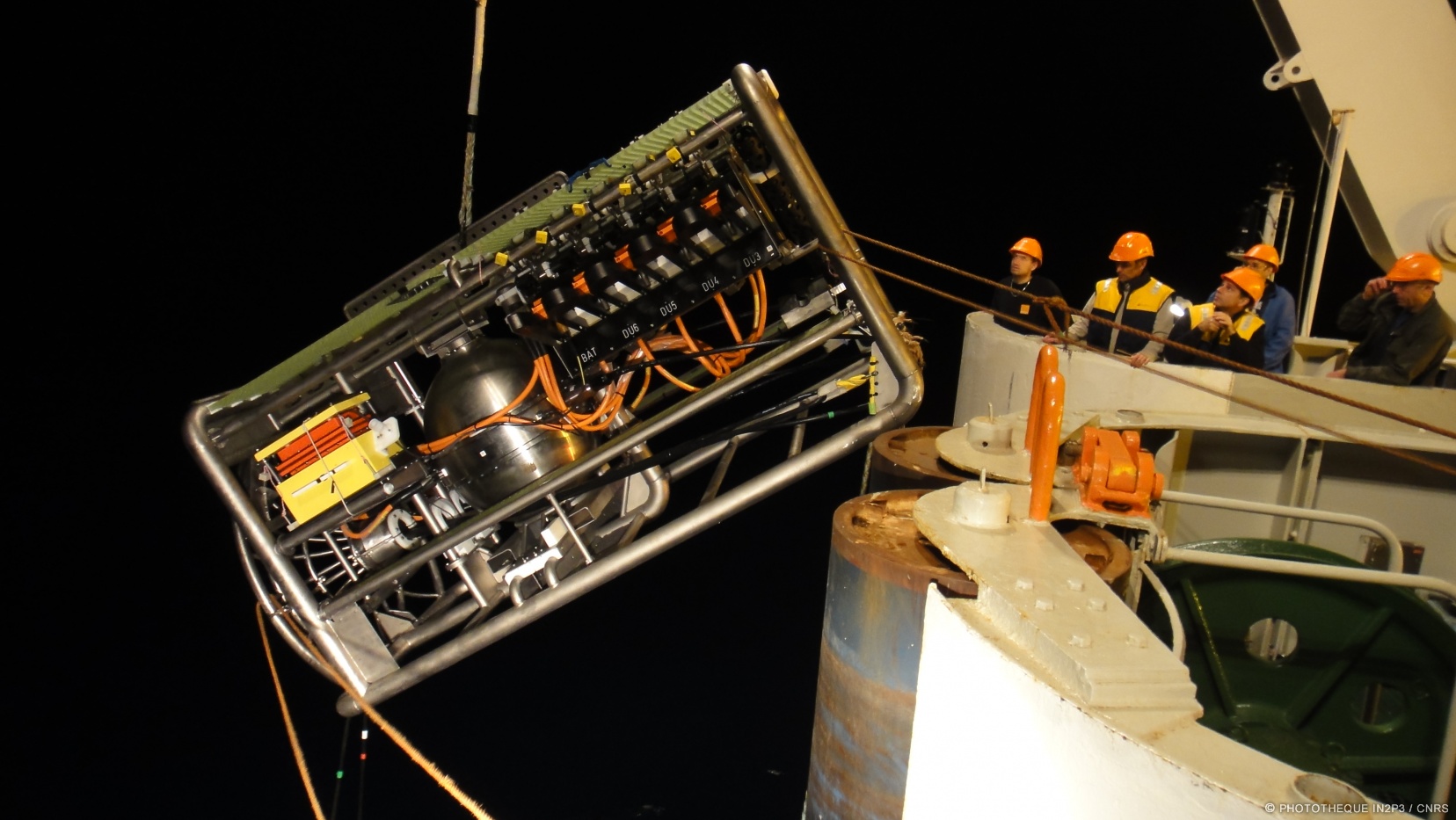

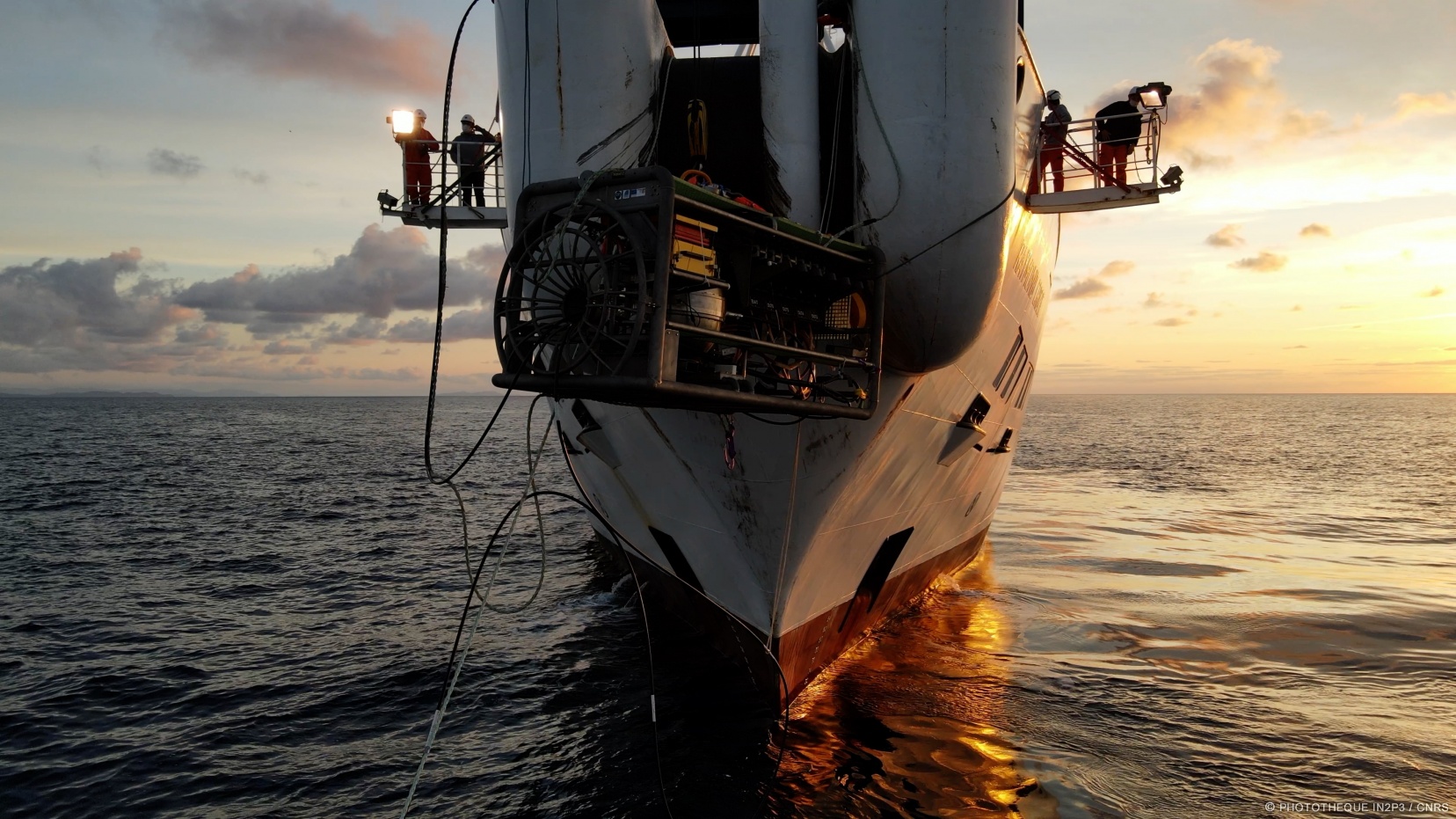

Déploiement du Nœud 2 de connexion du LSPM © Orange Marine

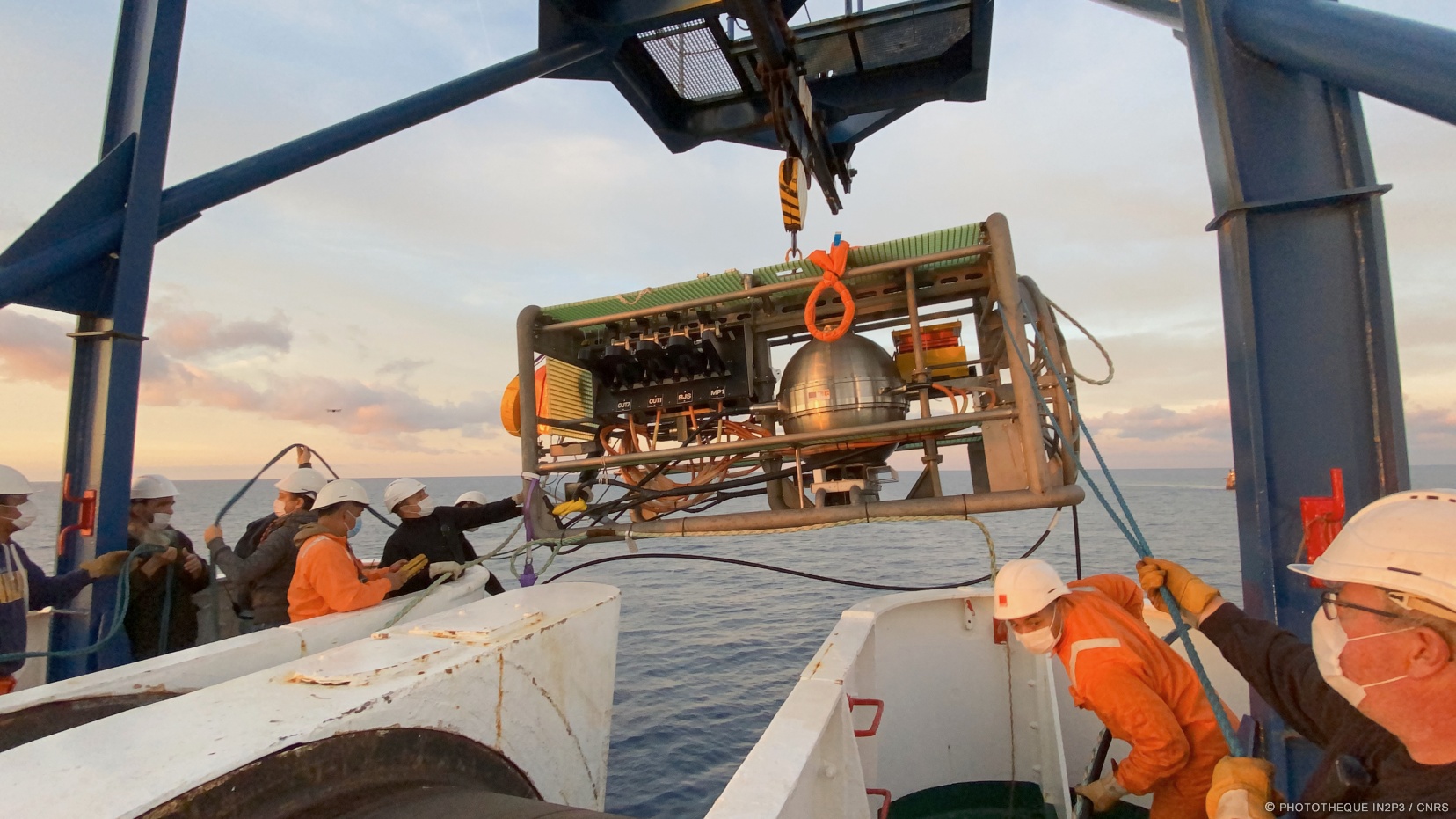

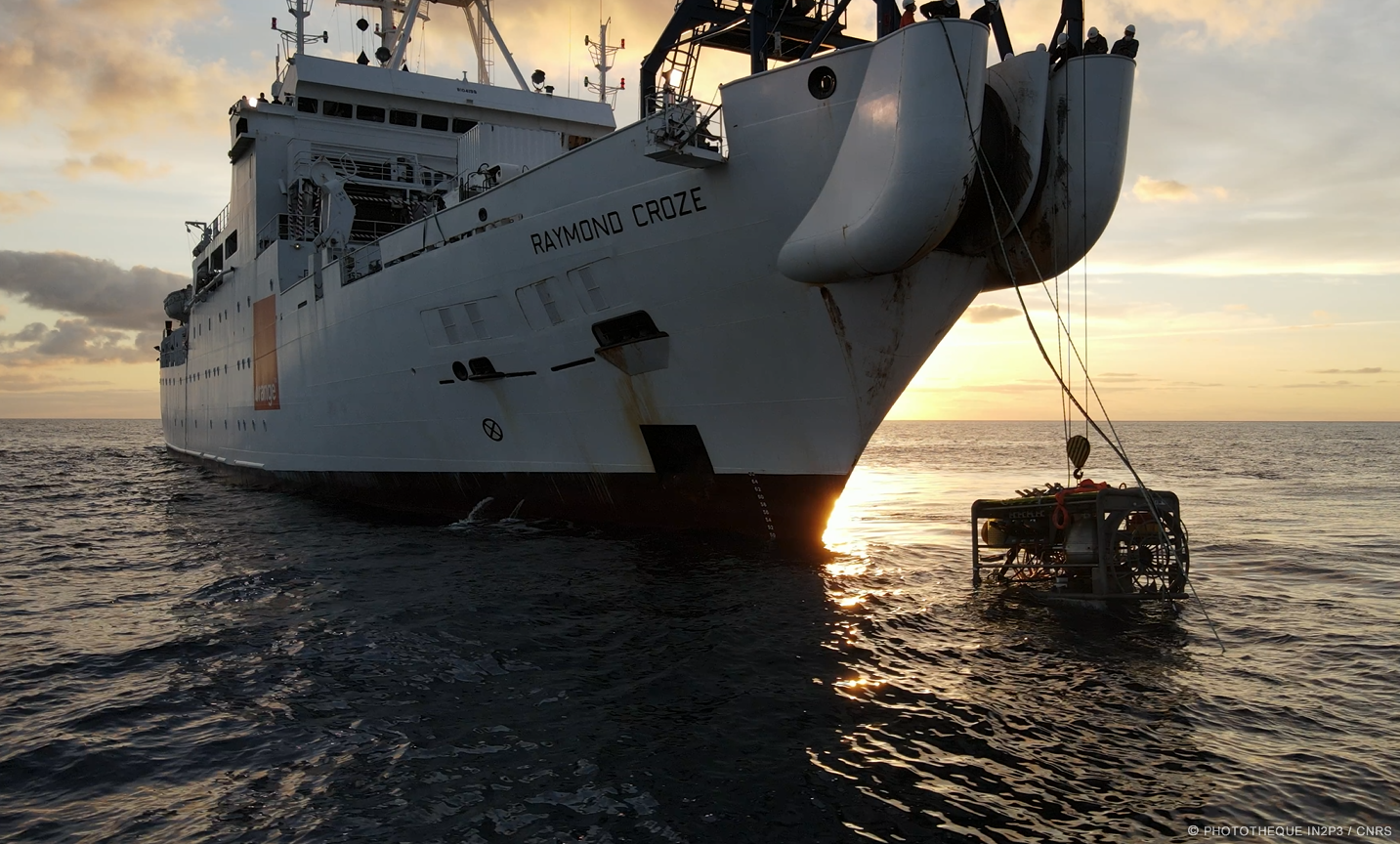

Déploiement du Nœud 2 de connexion du LSPM © Orange Marine

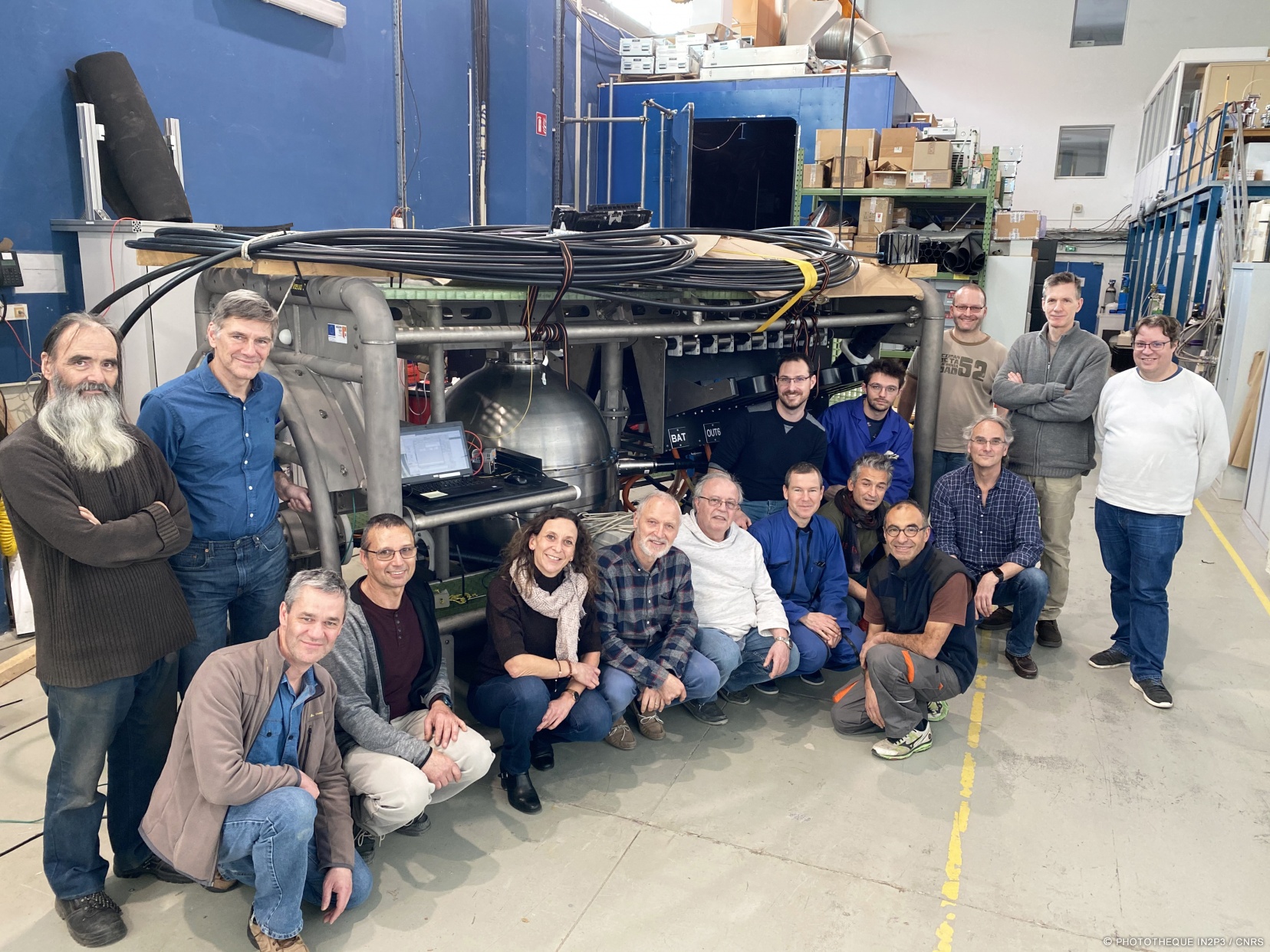

Une partie de l'équipe du LSPM devant le Nœud 2 de connexion © CPPM

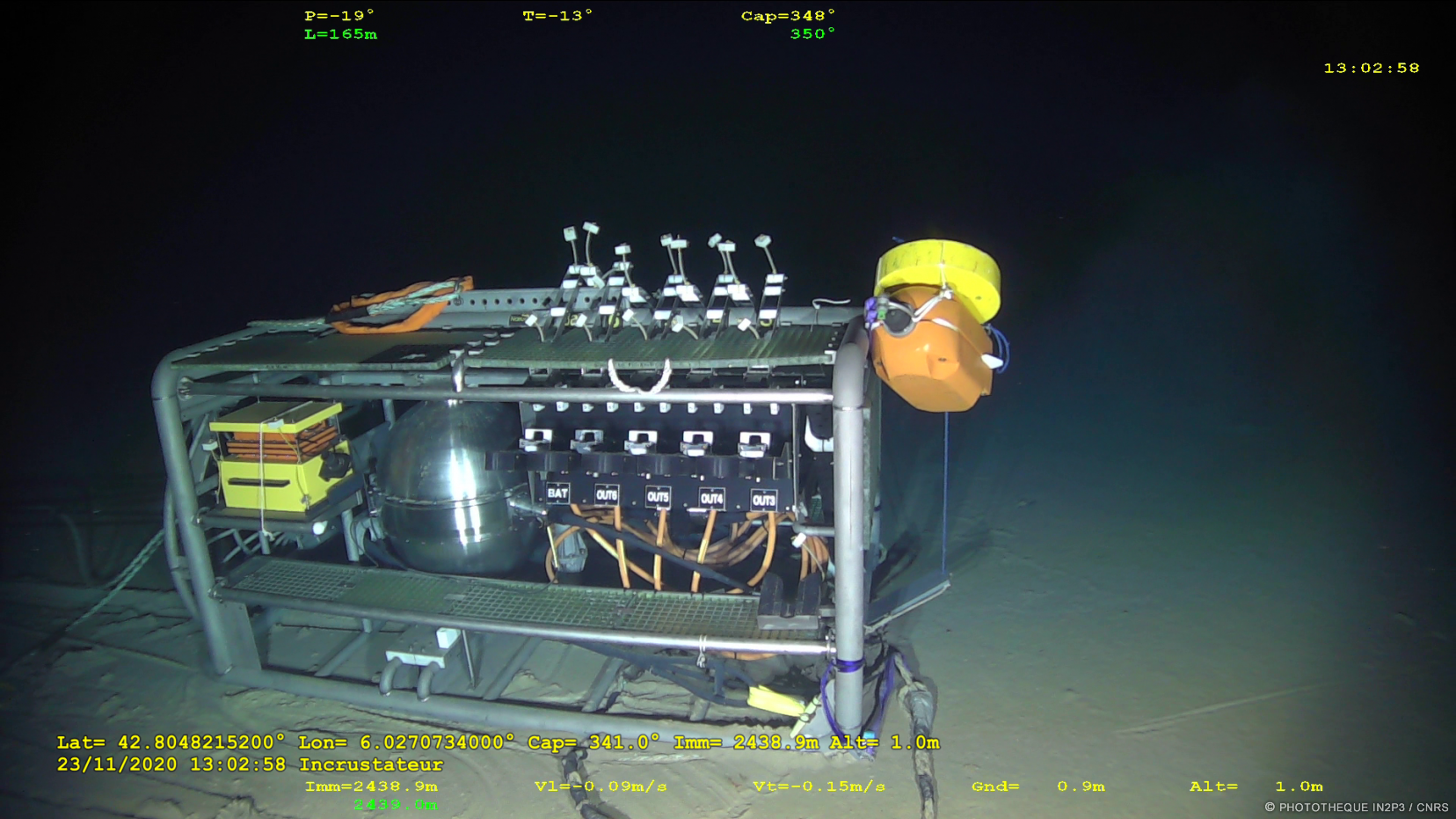

Nœud 1 de connexion installé par 2450 mètres de profondeur © Ifremer

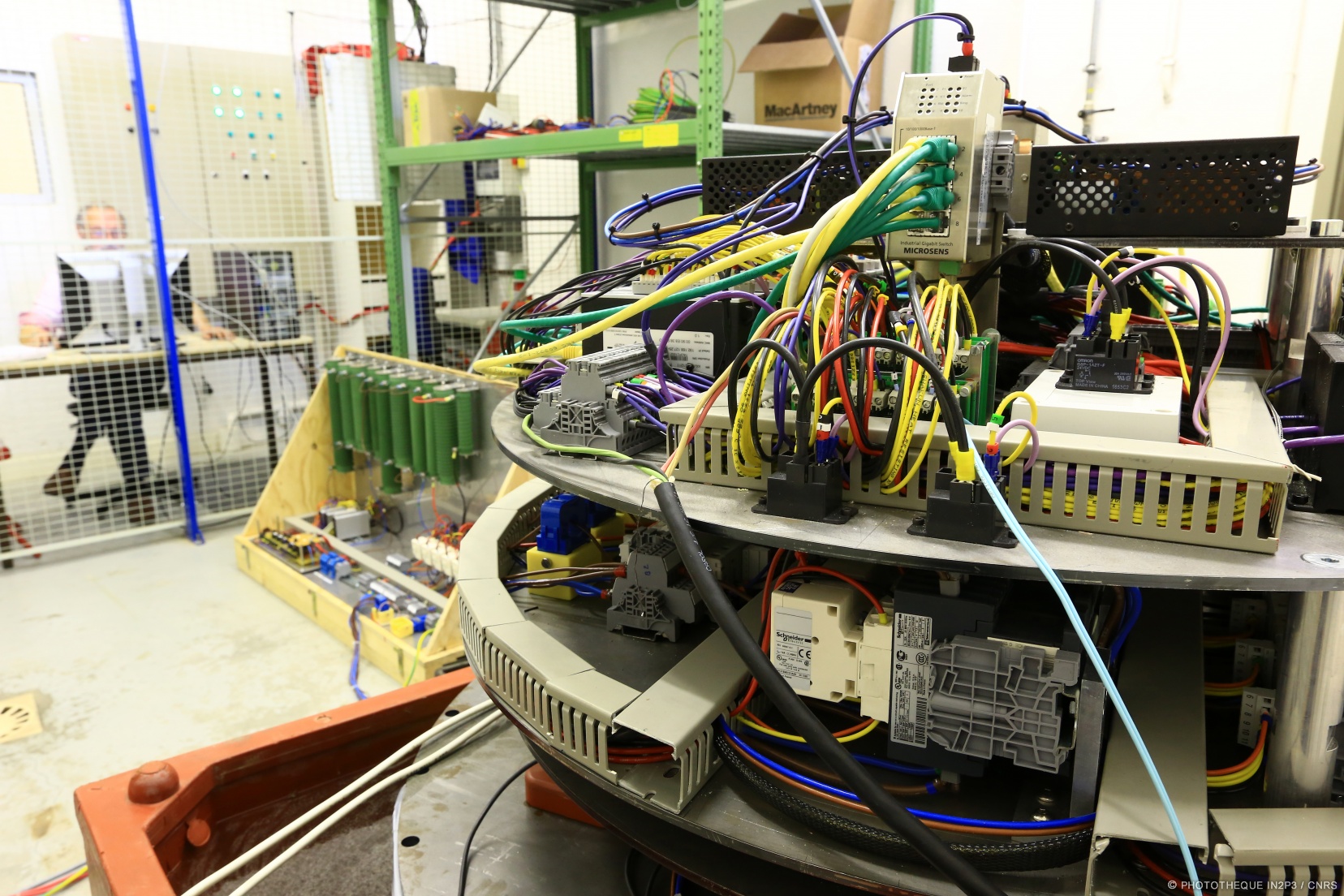

Cartes électroniques de la boite de jonction du Nœud 2 de connexion (contrôle commande, liaison optique, puissance) © Camille Moirenc
Déploiement du Nœud 1 de connexion du LSPM © CPPM

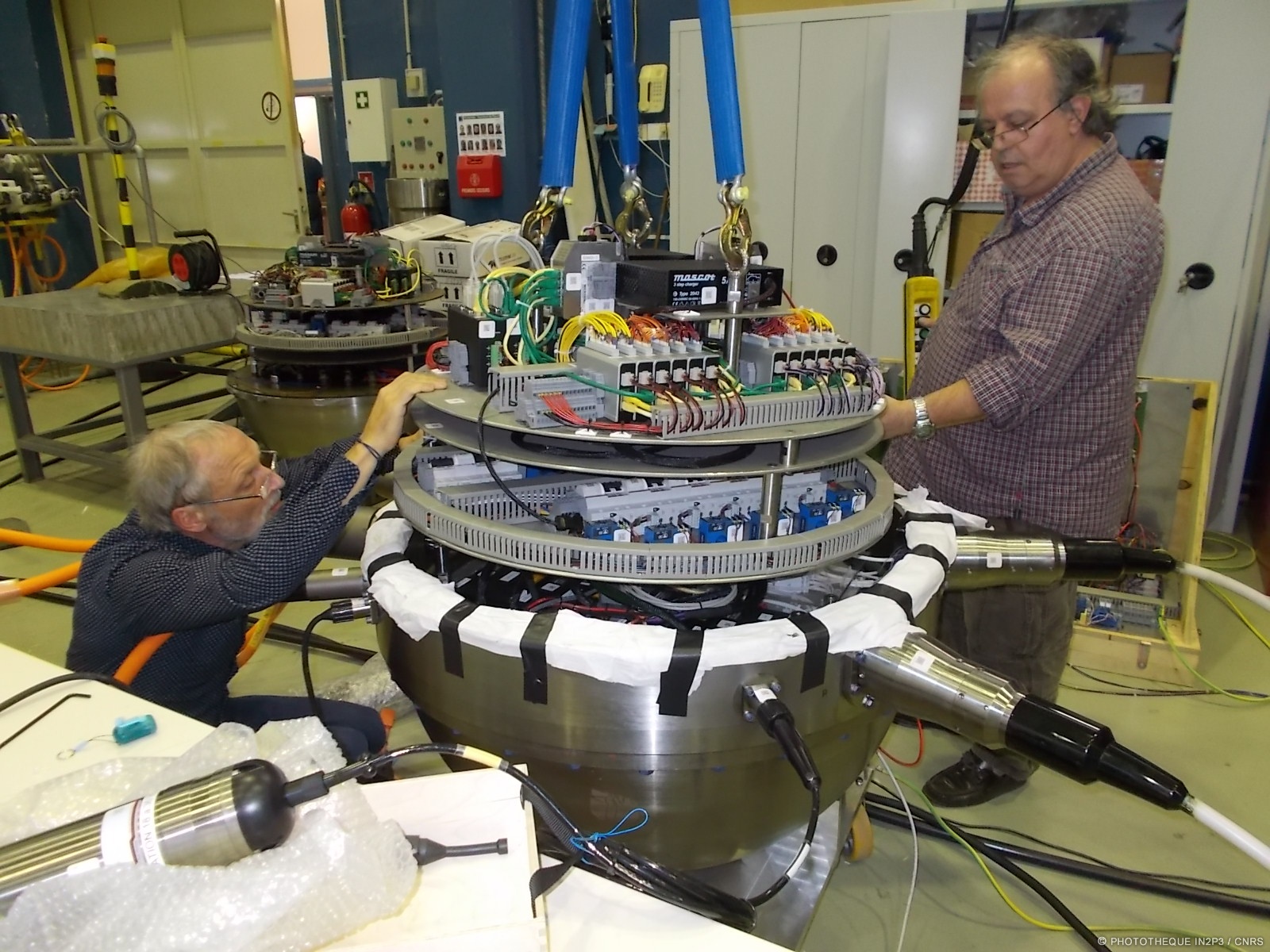

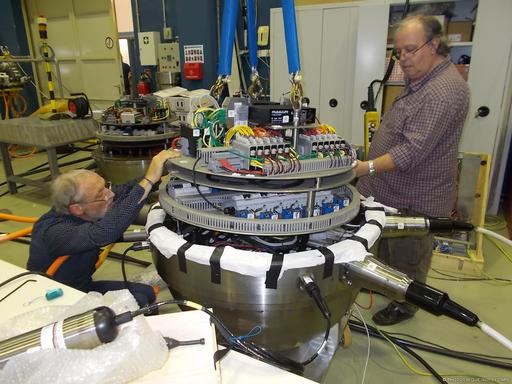

Cartes électroniques de la boîte de jonction du Nœud 2 de connexion (contrôle commande, liaison optique, puissance). © CPPM

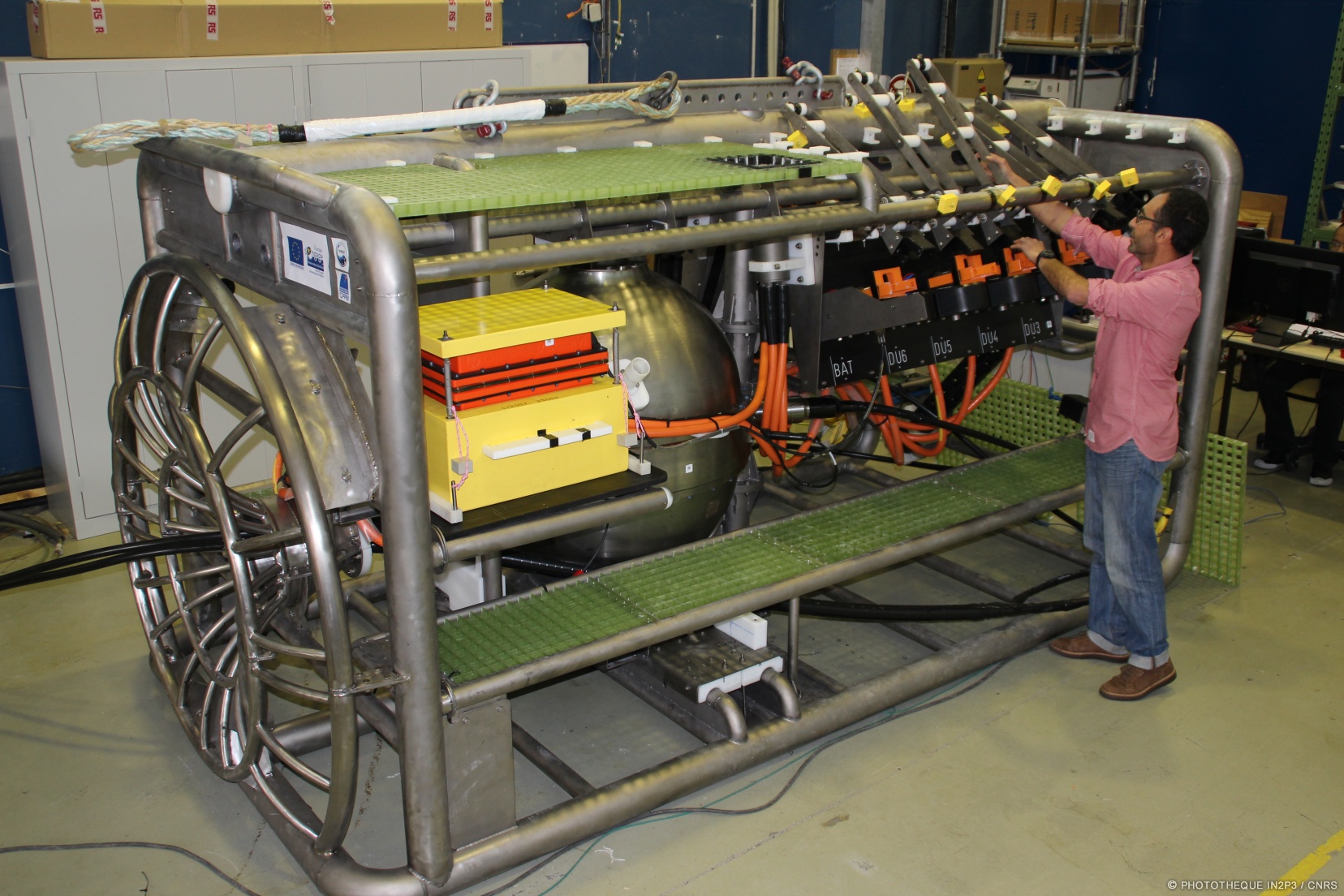

Nœud 1 de connexion finalisé au CPPM avant déploiement © Magali Damoiseaux - CPPM

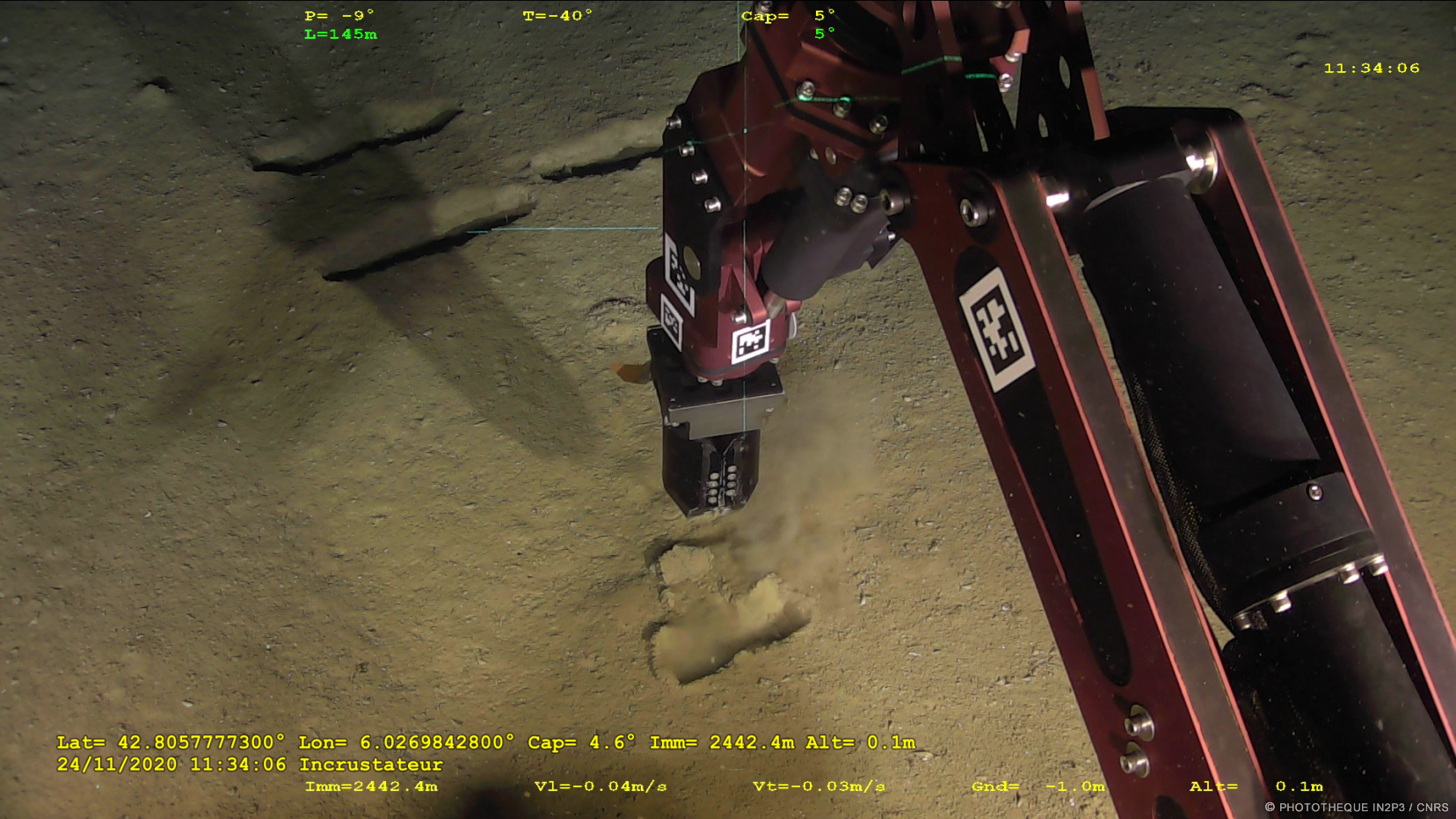

Bras téléopéré du robot de la Comex © Comex/SAAS

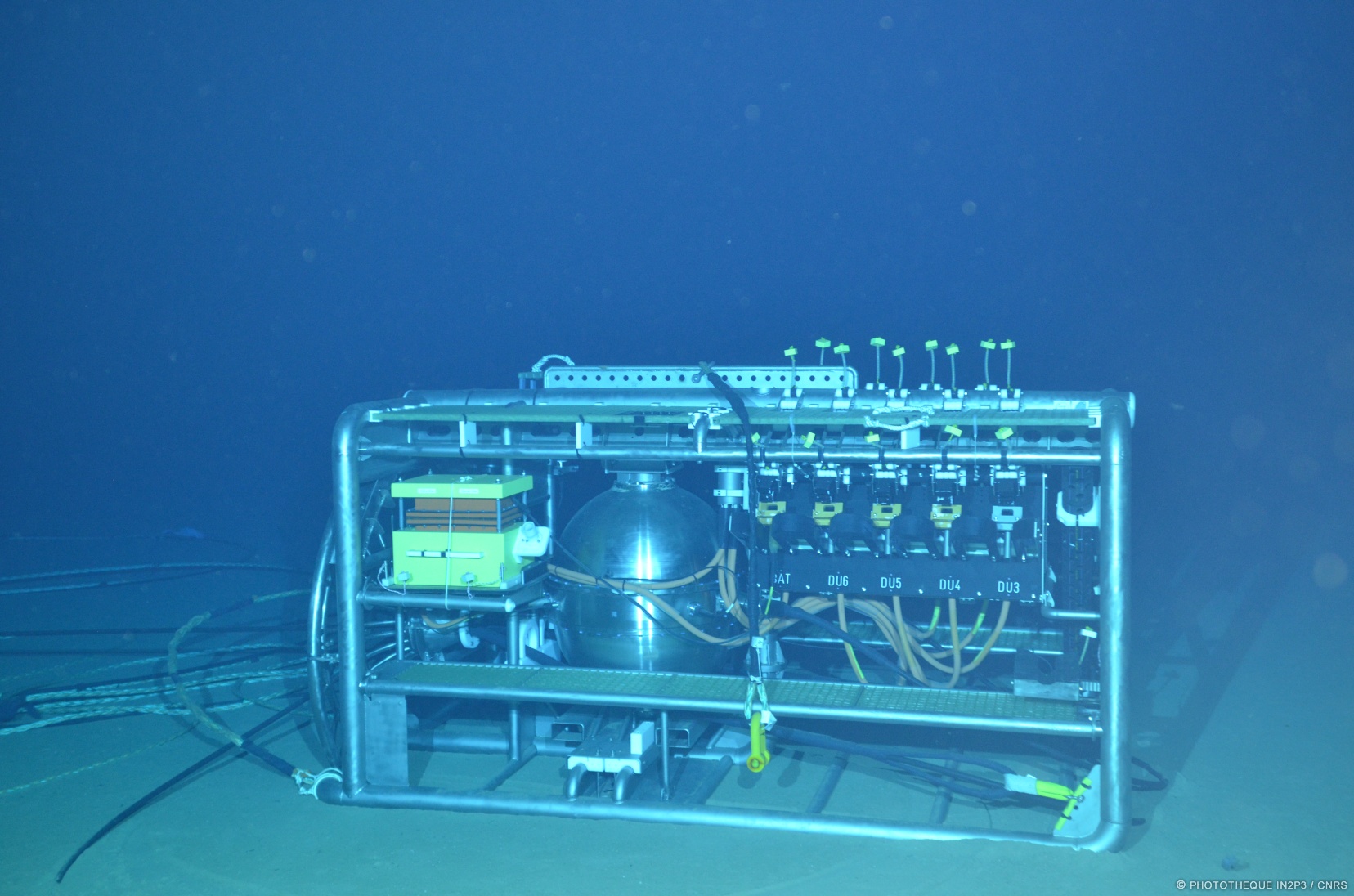

Nœud 2 de connexion installé par 2450 mètres de profondeur © Comex/SAAS
